In global fluid power, industrial process piping, and pneumatic systems, the NPT fitting (National Pipe Taper) remains the premier American connection standard. Governed by ASME B1.20.1, NPT threaded fittings are engineered to form a reliable, pressure-tight seal through mechanical thread deformation.
However, misidentifying a fitting NPT thread profile or confusing nominal pipe dimensions with actual caliper measurements leads to assembly leaks, port cracking, and system downtime.
As a premier custom OEM/ODM pipe fitting supplier in China, Yuhuan Hongqian Machinery Co., Ltd. operates advanced CNC lathe machine production lines to manufacture high-precision NPT pipe fittings. This engineering guide covers everything you need to know about what an NPT fitting is, how to identify it, standard dimensional data, and machining best practices.
What is an NPT Fitting? Key Geometric Characteristics
An NPT fitting utilizes a standardized tapered thread profile designed to create an interference fit as male and female components engage.
Unlike straight parallel threads that require an elastomeric O-ring or bonded washer, tapered NPT fittings seal along the thread flank itself.
NPT Thread Geometry Profile:
├── Taper Angle ──> 1° 47' (1.7899°) measured from the centerline axis
├── Taper Rate ──> 3/4 inch per foot (1/16 inch per inch of length)
├── Thread Angle ──> 60° included V-thread angle between flanks
└── Crest & Root ──> Truncated flat crests and flat roots (requires sealant)
Because the crests and roots of standard NPT pipe fittings are flat rather than rounded, microscopic clearance gaps remain when male and female threads mate. Therefore, a thread sealant such as PTFE Teflon tape or anaerobic pipe dope is required to achieve a 100% leak-free joint for liquids and pressurized gases.
How to Know if a Fitting is NPT: Step-by-Step Identification
Because nominal pipe sizes date back over a century, a 1/2″ NPT fitting does not measure 0.500 inches on any caliper face. Follow this comprehensive step-by-step identification and verification process:
Method 1: Manual Measurement & Sizing Verification
Step 1: Check for Thread Taper
Visually inspect the thread profile. In a tapered fitting NPT, the outer diameter decreases gradually toward the end of the fitting at a 1° 47′ angle. If the thread diameter remains constant across the entire length, you are working with parallel threads (such as NPS or BSPP).
Step 2: Measure the Thread Outer Diameter (OD)
Using calibrated digital calipers, measure the outside diameter across the male thread crests at the widest point (closest to the hex body).
Step 3: Determine the Thread Pitch (TPI)
Use an imperial thread pitch gauge or count the number of thread crests within a 1-inch span to find the Threads Per Inch (TPI).
Step 4: Cross-Reference with the Standard NPT Sizing Chart
Method 2: Calibrated L1 / L2 Thread Plug & Ring Gauges (Workshop In-Process Inspection)
For in-process manufacturing checks and rapid batch screening, calibrated master gauges verify the pitch diameter, taper rate, and thread truncation simultaneously:
-
L1 Thread Ring & Plug Gauges: Hand-tighten the gauge onto the NPT thread until snug. The end face of the fitting must align with the notch on the gauge within a tolerance of ±1 turn (±1 flush step).
-
L2 Thread Gauges: Used to inspect the full functional thread length and overall taper consistency across deeper thread engagements.
Method 3: 2.5D Optical Profile Projector & Optical Video Measuring (First-Article & Lab Inspection)
To obtain precise numerical readings of the taper rate and individual flank angles during tooling setup or first-article inspection (FAI):
-
Optical Contour Measurement: The threaded component is mounted on a 2.5D optical video measuring machine or profile projector under high-contrast contour illumination.
-
Flank Half-Angle Verification: Metrology software measures the included 60° thread angle and individual 30° flank half-angles to detect cutting tool wear.
-
Taper Angle Calculation: By capturing multiple coordinate points along the outer thread crests and roots across the longitudinal axis, the system measures the exact 1° 47′ taper angle (1:16 taper ratio) and verifies flat root/crest truncation.
Standard NPT Thread Dimensions & TPI Reference Chart
| Nominal NPT Size | O.D. of Male Threads (in.) | O.D. of Female Threads (in.) | Threads Per Inch (TPI) | Pitch (mm) |
| 1/8″ NPT | 0.405 | 0.360 | 27 | 0.941 |
| 1/4″ NPT | 0.540 | 0.470 | 18 | 1.411 |
| 3/8″ NPT | 0.675 | 0.590 | 18 | 1.411 |
| 1/2″ NPT | 0.840 | 0.750 | 14 | 1.814 |
| 3/4″ NPT | 1.050 | 0.950 | 14 | 1.814 |
| 1″ NPT | 1.315 | 1.200 | 11.5 | 2.209 |
| 1-1/4″ NPT | 1.660 | 1.560 | 11.5 | 2.209 |
| 1-1/2″ NPT | 1.900 | 1.800 | 11.5 | 2.209 |
| 2″ NPT | 2.375 | 2.270 | 11.5 | 2.209 |
(Note: In procurement search logs, NTP fitting is a common typographical error for NPT fitting.)
How High-Precision NPT Fittings Are Produced on CNC Lathe Machines
Producing leak-free NPT threaded fittings requires strict dimensional control over the 1° 47′ taper profile, flank half-angles, and thread relief grooves.
1. Multi-Axis CNC Lathe Machine Turning
Precision NPT fittings are primarily manufactured on automated CNC lathe machine lines from solid cold-drawn hexagonal bar stock (such as 20# carbon steel, AISI 1045, or 316L stainless steel) or hot-forged blanks:
-
Single-Point CNC Threading: Multi-axis CNC lathe machines utilize carbide threading inserts with specialized PVD coatings (such as AlTiCrN) to single-point turn the taper and thread profile simultaneously.
-
Tight Tolerances: Automated CNC turning maintains linear tolerances within ±0.01 mm, eliminating root-radius chatter and micro-flank irregularities.
-
Surface Roughness: The CNC lathe machine achieves a smooth surface finish of Ra 1.6 μm to Ra 0.8 μm across thread flanks and sealing tapers, ensuring maximum surface contact area under low assembly torque.
2. In-Process Thread Verification
Every batch of NPT pipe fittings turned on our CNC lathe machine cells is verified using calibrated L1 and L2 taper thread ring/plug gauges to ensure thread engagement depth meets ASME B1.20.1 standards within ±1 turn.

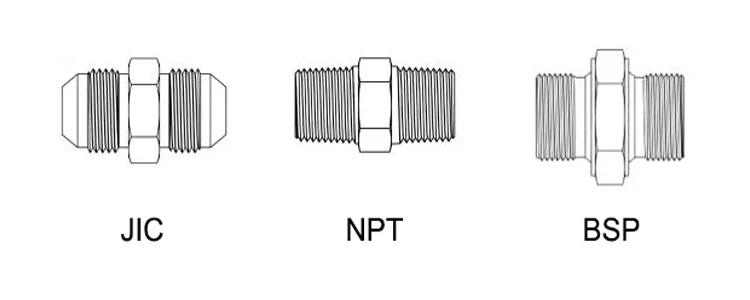

Thread Compatibility: NPT vs. NPS vs. BSP
Thread System Comparison:
├── NPT (National Pipe Taper) ──> 60° Angle | 1° 47' Taper | Interference Seal (Requires PTFE tape)
├── NPS (National Pipe Straight) ──> 60° Angle | Parallel (No Taper) | Requires O-Ring or Gasket
└── BSP (British Standard Pipe) ──> 55° Angle | Whitworth Profile | Incompatible with NPT (Never mix)
-
NPT vs. NPS: Both share a 60° thread angle and identical TPI, but NPS threads are parallel. Male NPT will engage loosely in female NPS, but it will not create a pressure-tight seal without a sealing washer.
-
NPT vs. BSP (BSPT/BSPP): BSP uses a 55° thread angle and different pitch standards (e.g., 1/2″ NPT is 14 TPI; 1/2″ BSP is 14 TPI but differs in tooth angle, while 1″ NPT is 11.5 TPI vs. 1″ BSP at 11 TPI). Never force an NPT fitting into a BSP port, as cross-threading will strip the threads and create leak paths.
Common Industrial Applications of NPT Pipe Fittings
Because of their mechanical strength and pressure ratings up to 6,000+ PSI (depending on material schedule), NPT threaded fittings are specified across major sectors:
-
Process Pumps & Compressors: Inlet and outlet fluid ports (standard 1/2″, 3/4″, and 1″ NPT).
-
Instrumentation & Pressure Gauges: 1/4″ NPT bottom and back mount connections.
-
Industrial Valves: Carbon steel and stainless steel ball valves, needle valves, and check valves.
-
Hydraulic Adapters: NPT to JIC 37° flare, NPT to BSPP swivel adapters, and NPT hex nipples.
Installation Best Practices for NPT Fittings
To ensure long-term pressure integrity and avoid damaging mating components during installation:
-
Apply PTFE Teflon Tape Correctly: Wrap thread tape 3 to 4 turns in a clockwise direction (when facing the male thread end) so the tape does not uncoil during tightening. Leave the first 1 to 2 threads bare to prevent tape fragments from contaminating internal fluid circuits.
-
Torque by Turns, Not Brute Force: Tighten the NPT fitting hand-tight, then use a wrench to turn it an additional 1.5 to 3 turns. Overtightening can split female cast ports or cause thread galling.
-
Use Dual Wrenches: Always support the valve or pump housing with a backup wrench while tightening the fitting NPT to prevent putting torsional stress on connected equipment.
Frequently Asked Questions (FAQ)
How to know if a fitting is NPT?
To determine if a fitting is NPT, inspect the threads for a 1° 47′ taper using calipers to measure the outer diameter at both ends of the thread. Then, check that the thread profile has a 60° angle and match the outer diameter and TPI against the standard ASME B1.20.1 sizing chart.
Will NPT screw into NPT?
Yes. A male NPT thread is designed to screw directly into a matching female NPT port of the same nominal size. As the fitting is tightened, the matching 1° 47′ tapers bind together to form an interference mechanical seal.
Can I use Teflon tape on NPT fittings?
Yes. Teflon tape (PTFE tape) or anaerobic pipe sealant is required on all standard NPT fittings. Because NPT threads have flat crests and roots, thread tape is necessary to fill microscopic spiral leak paths and provide lubrication during tightening.
Are PVC pipe fittings NPT?
Yes. In North American commercial and residential plumbing, threaded PVC, CPVC, and plastic pipe fittings feature standard NPT tapered pipe threads. This allows them to mate directly with metallic NPT valves, pressure gauges, and adapters.
Source Custom CNC Machined NPT Fittings from Yuhuan Hongqian Machinery
As an ISO-certified OEM/ODM pipe fitting supplier in China, Yuhuan Hongqian Machinery Co., Ltd. specializes in manufacturing high-precision NPT pipe fittings, hydraulic adapters, hex nipples, and custom threaded plugs.
-
Advanced CNC Lathe Machine Cells: High-speed multi-axis turning lines holding linear and diameter tolerances within ±0.01 mm and thread roughness down to Ra 0.8 μm.
-
Material Integrity & Traceability: Full EN 10204 3.1 Mill Test Certificates (MTC) supplied for 20# carbon steel, AISI 1045, Q235B, and 316L stainless steel.
-
Corrosion Protection: Trivalent zinc plating (Cr3+ Clear / Yellow) for 72h–120h NSS, or heavy-duty zinc-nickel alloy plating for 720h–1000h NSS.
-
Strict Quality Control: 100% thread ring/plug gauge verification and optical projection inspection on every production lot.
