Sourcing 316 stainless steel fittings, precision ss 316 fittings, and custom marine grade stainless fittings requires far more than comparing price quotes—it demands strict verification of chemical metallurgy, print compliance, edge quality, and thread functionality. In harsh chemical processing, offshore marine piping, and semiconductor fluid networks, a single unverified dimension, subsurface material fissure, or razor-sharp thread burr can turn an entire shipment into scrap and lead to catastrophic job-site failures.
Securing qualified components relies on evaluating suppliers across four uncompromising engineering benchmarks: raw material verification and crack prevention, strict print adherence without hidden modifications, microscopic deburring for functional mating, and hard-gauge thread pass rates.
1. Material Integrity: Chemistry, Traceability, and the Truth About Cracks
Material non-conformance is the primary cause of premature pitting, stress corrosion cracking (SCC), and catastrophic burst failures in fluid hardware deployed in aggressive media.
Chemical Composition & Positive Material Identification (PMI)
Under the ASTM A403 specification for wrought austenitic fittings, chemical thresholds are non-negotiable:
-
Molybdenum (2.00% to 3.00%): This essential addition distinguishes 316 from basic stainless alloys. Molybdenum raises the Pitting Resistance Equivalent Number (PREN) from ~18 to 23–25, giving the metal its signature resistance to chlorides, marine salt spray, and corrosive acids.
-
Chromium (16.00% to 18.00%) and Nickel (10.00% to 14.00%): Higher nickel stabilizes the austenitic crystal lattice, while chromium provides baseline oxidation protection.
-
Separating 316 from 316L: Straight 316 permits up to 0.08% carbon, whereas 316L restricts carbon to ≤ 0.03%. If fittings are welded on site, excess carbon triggers chromium carbide precipitation along the heat-affected zone (sensitization), destroying localized corrosion resistance.
-
On-Site PMI Verification: Generic Material Test Reports (MTRs) pose significant risks in global supply chains. A qualified manufacturer operates handheld X-ray Fluorescence (XRF) analyzers on the shop floor to perform 100% incoming and outgoing PMI verification, confirming elemental chemistry before and after machining.
The Engineering Reality of Internal Material Cracks
A fitting can display perfect chemical percentages on paper yet fail under working pressure due to internal voids or seams.
-
Blank Forming Hierarchy: Turning fittings from solid cold-drawn bar stock provides the lowest crack probability compared to hot forgings, cold-headed blanks, or sand castings.
-
The Bar Stock Limitation: Even solid bar stock cannot physically guarantee a 0% crack rate. Subsurface rolling seams, central piping, and metallurgical inclusions from the primary steel mill can occasionally survive inside the material undetected.
-
The Zero-Crack Cost Trade-Off: If your piping installation involves high-pressure, flammable gas, or hazardous chemicals where cracks cannot be tolerated, you must explicitly stipulate a zero-crack acceptance criteria and budget for non-destructive testing (NDT).
-
Flaw Detection Protocols:
-
Ultrasonic Testing (UT) / Eddy Current Testing (ET): Scans solid bar raw material and finished bodies for internal laminations and longitudinal cracks.
-
Liquid Penetrant Inspection (PT): Detects micro-fissures around high-stress transition radii and weld preps.
-
Rule of Thumb: Sourcing solid bar drastically minimizes defect rates, but active NDT inspection is the only method to physically eliminate crack risks.
-

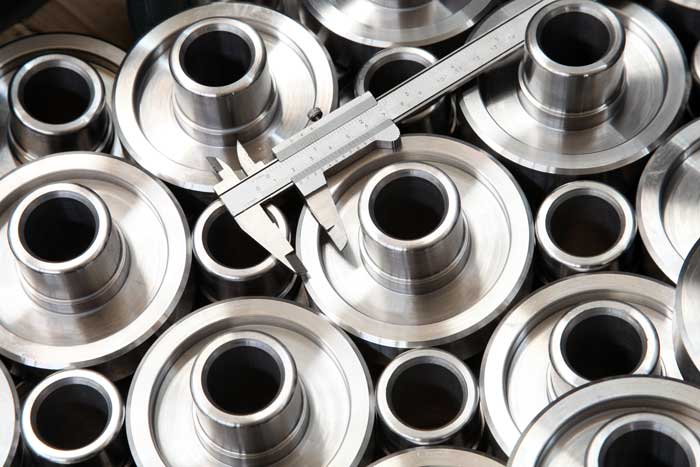

2. Drawing Adherence: Fulfilling Functional Requirements and Catching “Hidden” Traps
A fitting is only qualified if it satisfies its functional assembly requirements—holding rated working pressures, sealing without leakage, and interfacing with mating hardware.
Blueprints vs. Unauthorized Supplier Alterations
-
Precision machined features—including minimum wall thicknesses, internal bore concentricity, hex flats, and sealing seat angles—must conform to drawing tolerances (typically held between ± 0.01 mm and ± 0.05 mm).
-
The Hidden Quality Trap: Unscrupulous subcontractors frequently alter non-toleranced internal geometries to cut machining cycle times on tough-to-cut 316 material. Examples include thinning internal pressure walls, expanding tool relief undercuts, or enlarging lead chamfers.
-
The Consequence: A fitting with an unauthorized 0.5 mm internal wall reduction will thread into place and appear functional, but its burst pressure threshold is compromised.
-
Manufacturing Control: Source exclusively from precision machine shops utilizing Coordinate Measuring Machines (CMM) and optical comparators to audit first-article inspections (FAI) against native CAD models.
3. Surface Roughness (Ra) and Deburring: The Cost of Overlooked Details
Surface finish and deburring are functional engineering criteria, not cosmetic preferences. Overlooking micro-burrs leads directly to mechanical and hydraulic failures.
-
Thread-Stripping on Plastic Mating Parts: When 316 stainless steel fittings thread into plastic valves, PVC manifolds, or PTFE/POM flow meters, razor-sharp entry-thread burrs act like cutting tools. They slice and deform the soft plastic female threads during torque-down, resulting in stripped threads and immediate fluid leaks.
-
Sealing Seat Integrity: Dynamic O-ring faces, flat gasket seats, and metal-to-metal flare cones require tightly controlled roughness (Ra ≤ 0.8 μm, down to Ra ≤ 0.4 μm for critical hydraulic seals). Tool chatter marks and spiral turning grooves form micro-channels that bypass seals under pressure.
-
Work-Hardened Edge Hazards: Because 316 work-hardens rapidly during turning, micro-burrs become razor-sharp and brittle, posing severe laceration risks to assembly line operators.
-
Process Control: Qualified machine shops route parts through multi-stage vibratory tumbling, magnetic abrasive deburring, and specialized edge-breaking passes to ensure 100% burr-free threads and smooth sealing faces.
4. Thread Pass Rate: The Functional Bottom Line
Threads represent the primary structural and pressure-containing element of a threaded 316 stainless steel fitting. Thread quality is binary: it either mates perfectly within tolerance, or it fails.
| Thread Type | Standard | Sealing Method | Quality Control Protocol | Primary Failure Mode |
| NPT / NPTF | ASME B1.20.1 | Metal-to-metal flank interference across 1°47′ taper | L1/L2 thread plug and ring gauges, crest truncation checks | Inaccurate taper angle, truncated roots causing spiral leak paths |
| BSPP (G) | ISO 228-1 | Straight parallel thread; requires O-ring or bonded seal | Go / No-Go calibrated plug and ring gauges | Pitch diameter out-of-round, thread chatter, shoulder burrs |
| BSPT (R/Rc) | ISO 7-1 | 55° flank angle tapered pipe thread | System-matched 55° taper plug and ring gauges | Angle mismatches (mixing 60° tooling with 55° threads) |
-
Go / No-Go Gauge Verification: Thread acceptance relies on calibrated physical gauges. The Go gauge must spin on smoothly to the reference notch without wobble, while the No-Go gauge must bind within 1.5 to 2 turns max.
-
Preventing Galling (Cold Welding): Grade 316 has a strong tendency to gall under high tightening friction. CNC threading inserts must remain sharp to prevent ragged, torn crest profiles that tear away the native oxide film and seize the connection during field assembly.
Technical Inspection Checklist for Sourcing 316 Fittings
| Inspection Parameter | Target Specification & Acceptance Criteria | Standard Verification Method |
| Chemical Analysis | Cr: 16.00–18.00%, Ni: 10.00–14.00%, Mo: 2.00–3.00%, C: ≤ 0.08% (316) or ≤ 0.03% (316L) | Handheld XRF Analyzer (PMI), Optical Emission Spectrometry |
| Internal Flaws | 0% cracks, zero laminations, zero centerline inclusions | Ultrasonic Testing (UT), Liquid Dye Penetrant (PT) |
| Critical Dimensions | Within ± 0.01 mm to ± 0.05 mm; zero unapproved design alterations | CMM, 2.5D Optical Projector, Digital Micrometers |
| Surface Finish | Sealing surfaces Ra ≤ 0.4–0.8 μm; 100% deburred edges | Surface Roughness Tester, 10× Optical Magnification |
| Thread Precision | 100% pass on calibrated Go/No-Go limits; clean crests | Hard Thread Plug and Ring Gauges (NPT, BSPP, BSPT) |
Frequently Asked Questions (FAQ)
What is the practical difference between 304 and 316 stainless steel fittings?
The defining difference is the addition of 2.0% to 3.0% molybdenum in 316. While 304 performs well in freshwater, municipal plumbing, and general food processing, it suffers from rapid pitting in chloride-rich media. Grade 316 offers superior resistance against saltwater, sulfuric acid, and de-icing chemicals, making it mandatory for marine, pharmaceutical, and chemical applications.
Can 304 fittings be substituted for 316 to save project costs?
Only if the operating fluid and environment contain zero chlorides, low salinity, and mild chemicals. Substituting 304 into coastal installations, seawater lines, or acidic processing setups will trigger localized pitting corrosion (tea staining) and crevice leaks within months, wiping out any initial material savings.
Can a factory guarantee 100% crack-free 316 stainless steel fittings without NDT testing?
No. Machining components from cold-drawn solid bar stock significantly reduces internal defect rates compared to casting or forging, but subsurface rolling flaws from the primary steel mill can still occur. Achieving an absolute 100% crack-free guarantee requires specifying and budgeting for non-destructive testing (such as ultrasonic or dye penetrant testing).
Why do 316 stainless steel threads gall and seize during installation?
Austenitic alloys like 316 generate high friction under tightening loads. Microscopic burrs, rough thread flank surfaces, or incorrect pitch diameters cause the oxide barrier to shear off, leading to micro-welding and mechanical lockup. CNC thread turning with sharp tooling, proper deburring, and applying anti-seize paste during installation prevents galling.
