Direct SS Pipe Fitting Factory for Custom Precision Components
Finding a reliable, precision-focused SS pipe fitting factory for critical fluid, hydraulic, and pneumatic systems is essential to avoiding costly leaks and operational downtime. Operating as a direct CNC machining manufacturer and specialized SS pipe fitting supplier, we focus on OEM/ODM production of high-integrity stainless steel adapters, connectors, and custom valve components built strictly to customer drawings.
Equipped with over 80 advanced CNC lathes, automated gantry robots, and 4-axis machining centers, our SS pipe fitting factory supports global procurement teams from initial prototyping to high-volume manufacturing. Whether your application requires non-standard thread conversions or heavy-duty block fittings, our engineering team ensures tight tolerances down to ±0.02 mm and zero-leakage sealing performance.
Solved Engineering Challenges in Industrial Fluid Systems
High-pressure hydraulic and corrosive process environments present unique design and manufacturing hurdles. Standard off-the-shelf components from a generic distributor frequently fall short when integrated into custom manifolds or extreme operating conditions.
-
High Pressure Leaks and Pitting Corrosion: Standard carbon steel corrodes rapidly in harsh coastal or chemical environments, while mass-produced fittings often lack surface smoothness. As a specialized SS pipe fitting factory, we process marine-grade 316L and 2205 duplex stainless steel with sealing surface roughness controlled down to Ra ≤ 0.8 μm to ensure perfect O-ring compression.
-
Mismatched Thread Standards: Finding immediate inventory for cross-standard adapters—such as NPTF male to BSPP female or JIC 37° flare to Metric—can cause severe project delays. Our factory cuts and chases all international thread profiles in-house, ensuring proper pitch and angle engagement.
-
Concentricity Deviation and Jaw Marks: Multi-setup turning across separate lathes creates concentricity errors and leaves jaw marks on finished fittings. Our SS pipe fitting factory utilizes single-setup dual-end turning with internal expansion collets and gap-design fixtures, eliminating surface clamping marks and maintaining 0.01 mm to 0.02 mm parallelism.
Manufacturing Scope at Our SS Pipe Fitting Factory
Our flexible production lines process round bar stock, seamless tubing, hot forgings, and investment castings into a comprehensive lineup of custom fluid power components.
Round Hydraulic Fittings and Thread Adapters
Optimized for high-speed CNC lathe turning, our straight adapters, hex nipples, and hose connectors feature precise NPT, NPTF, BSPP, BSPT, Metric, and UNF threads. These components provide reliable sealing across hydraulic power units and industrial piping systems.
Machined Elbows, Tees, and Crosses
Manufactured from dense hot forgings or solid square blocks, our 30°, 45°, 90°, and non-standard angle fittings withstand high pressure surges and mechanical vibration without internal structural defects.
Custom Flanges and Bulkhead Fittings
Featuring single-setup face turning and multi-port flange drilling, our bulkhead connectors and custom flanges deliver leak-free wall penetrations and high-pressure joints.
Square Bodies and Integrated Manifold Blocks
Using 4-axis machining centers, our SS pipe fitting factory produces complex square fittings, valve seats, cavity plugs, and test ports with deep-hole internal fluid channels and tight flatness tolerances.
Technical Material Specifications and Machining Workflows
Selecting the correct stainless steel grade and blank form is critical to achieving the right balance of corrosion resistance, mechanical strength, and cost efficiency.
Complete Stainless Steel Material Spectrum
-
AISI 201: A cost-effective solution suited for general indoor plumbing fittings and structural components without severe chemical exposure.
-
AISI 303 (Free-Machining): Sulfur-alloyed for exceptional machinability, ideal for high-speed CNC turning of intricate threaded fittings.
-
AISI 304 / 304L: The universal industrial benchmark, offering excellent mechanical strength, weldability, and resistance against atmospheric oxidation.
-
AISI 316 / 316L: Molybdenum-enhanced austenitic grade providing superior resistance to pitting and chloride corrosion in marine and chemical processing systems.
-
AISI 410 / 420: Heat-treatable martensitic stainless steel delivering high hardness (45-52 HRC) for wear-resistant valve cores, seats, and internal stems.
-
Duplex 2205: Offers twice the yield strength of 304 combined with top-tier stress-corrosion cracking resistance for offshore drilling and heavy hydraulic systems.
Global Stainless Steel Material Cross-Reference Guide
| Material Category | China (GB/T) | USA (ASTM / AISI) | Japan (JIS) | Europe (EN / DIN) | Primary Characteristics and Ideal Applications |
| Austenitic (Free-Machining) | Y12Cr18Ni9 | 303 / UNS S30300 | SUS303 | 1.4305 / X10CrNiS18-9 | Free-machining grade; ideal for high-speed CNC lathe turning of intricate threads and small fittings. |
| Austenitic (General Purpose) | 12Cr18Ni9 / 06Cr19Ni10 | 304 / UNS S30400 | SUS304 | 1.4301 / X5CrNi18-10 | Universal benchmark; excellent balance of corrosion resistance and machinability for pipe fittings and flanges. |
| Austenitic (Low Carbon) | 022Cr19Ni10 | 304L / UNS S30403 | SUS304L | 1.4306 / X2CrNi19-11 | Intergranular corrosion resistant; requires no post-weld annealing, suited for welded pipe assemblies. |
| Austenitic (Marine Grade) | 06Cr17Ni12Mo2 | 316 / UNS S31600 | SUS316 | 1.4401 / X5CrNiMo17-12-2 | Mo-alloyed for pitting resistance; ideal for marine environments, salt spray, and chemical processing. |
| Austenitic (Marine Low Carbon) | 022Cr17Ni12Mo2 | 316L / UNS S31603 | SUS316L | 1.4404 / X2CrNiMo17-12-2 | Superior corrosion resistance and weldability; widely used in high-purity pharma and fluid power systems. |
| Martensitic (Hardenable) | 12Cr13 / 20Cr13 | 410 / UNS S41000 | SUS410 | 1.4006 / X12Cr13 | High strength and wear resistance; heat-treatable for increased hardness in internal stems and shafts. |
| Martensitic (High Hardness) | 20Cr13 / 30Cr13 | 420 / UNS S42000 | SUS420J2 | 1.4021 / X20Cr13 | Heat-treatable up to 45-52 HRC; ideal for high-pressure hydraulic valve cores and wear-resistant seats. |
| Duplex (High Strength) | 022Cr23Ni5Mo3N | 2205 / UNS S32205 | SUS329J3L | 1.4462 / X2CrNiMoN22-5-3 | Double the yield strength of 304; supreme stress-corrosion resistance for offshore heavy-duty systems. |
| Low-Nickel Austenitic | 12Cr17Mn6Ni5N | 201 / UNS S20100 | SUS201 | 1.4372 / X12CrMnNi17-7-5 | Economic choice; suitable for dry, non-corrosive environments in general commercial plumbing fittings. |
Equipment Allocation and Machining Capabilities
To ensure efficient production schedules and exact geometric tolerances, our SS pipe fitting factory routes components to dedicated machining setups:
-
CNC Turning Lathes (Rotational Components): Dedicated to round fittings, straight adapters, and threaded plugs. Capabilities include inner/outer diameter turning, grooving for O-rings and ferrules, and single-setup thread chasing.
-
Multi-Axis Machining Centers (Complex Components): Dedicated to square bodies, multi-port manifolds, and flanges. Capabilities include face milling, deep-hole drilling, internal cavity pocketing, and multi-angle tapping.

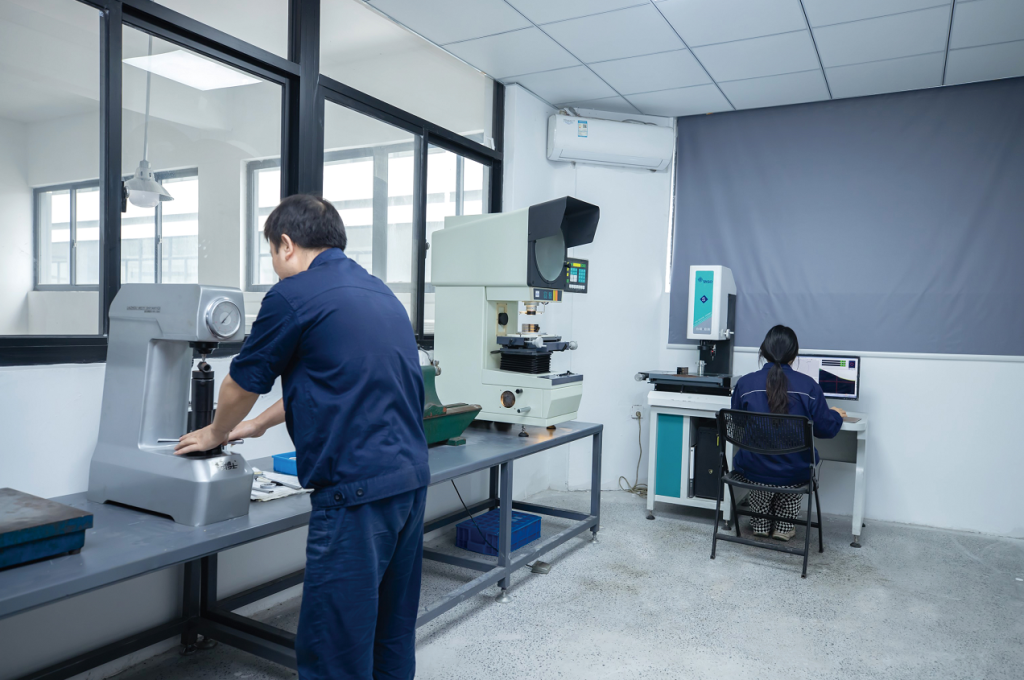

Quality Assurance and Factory Customization Process
Quality control is integrated into every stage of our manufacturing process to ensure fully compliant delivery from our SS pipe fitting factory:
-
Material Inspection: Raw bar stock and castings undergo 100% optical emission spectrometry testing to verify Ni, Cr, and Mo alloy percentages.
-
Thread Verification: Turned threads are checked 100% using calibrated Go/No-Go plug and ring gauges according to standard specifications.
-
Dimensional Auditing: Sealing seat angles, groove depths, and hole alignments are audited using optical profile projectors and coordinate measuring machines.
[Customer Drawing / RFQ] ➔ [24-Hour DFM & Quote] ➔ [7-Day Sample Prototyping] ➔ [Mass CNC Production] ➔ [100% QA Inspection] ➔ [Global Express Delivery]
Frequently Asked Questions
What technical information is required to receive a quote from your SS pipe fitting factory?
Please provide your 2D or 3D CAD drawings (STEP, IGES, or PDF) along with details on material grade, thread standards, required surface finish, and target order quantity.
How does your SS pipe fitting factory prevent thread damage and galling?
We utilize specialized coolant delivery systems, optimized tool geometries, and precise cutting speeds during thread chasing. Post-machining treatments like electropolishing or passivating are also available to enhance surface smoothness and prevent thread seizing during installation.
What is the lead time for prototypes and mass production at your SS pipe fitting factory?
Standard prototype samples are produced and inspected within 7 business days. Mass production lead times generally range from 2 to 4 weeks depending on order volume and material availability.
Partner with an Established SS Pipe Fitting Factory
Eliminate unnecessary distributor markups and secure precision-engineered components built to your exact specifications. Contact our engineering team at SS pipe fitting factory today to receive a comprehensive Design for Manufacturability (DFM) review and a competitive direct quote within 24 hours.
